Antrader RJ45/Cat6/Cat5e Tool-Less Keystone Jack Connector Adapter, Keystone Module Connector, for Internet Network Ethernet LAN Cable, with Color Coded Wiring Schema Snap in Stand, 10-Pack

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

Product description

Antrader RJ45/Cat6/Cat5e Tool-Less Keystone Jack Connector Adapter, Keystone Module Connector, for Internet Network Ethernet LAN Cable, with Color Coded Wiring Schema Snap in Stand, 10-Pack

Specifications:

DC resistance: ≤300mΩ

Contact resistance ≤20mΩ

Compressive strength: 1000V（AC750V）1min no breakdown and flying arc

Insulation resistance≥1000mΩ

IDC terminal: phosphor bronze, 22-26AWG conductor

The plug and the socket is inserted with more than 1000 times

Installation Instructions:

Strip off cable jacket to expose approximately 3/4″ of wires. Insert 2 pairs wires into the holes located on the top cover. Close the top cover to snap firmly on the plug. Take out the top cover and put another 2 pairs wire into the hole.Close the top cover to snap firmly on the plug.

Package Content:

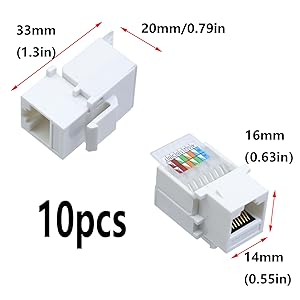

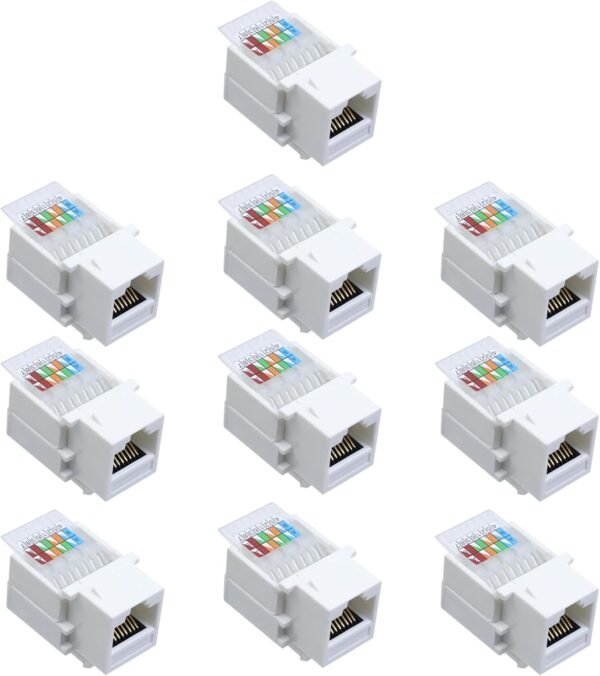

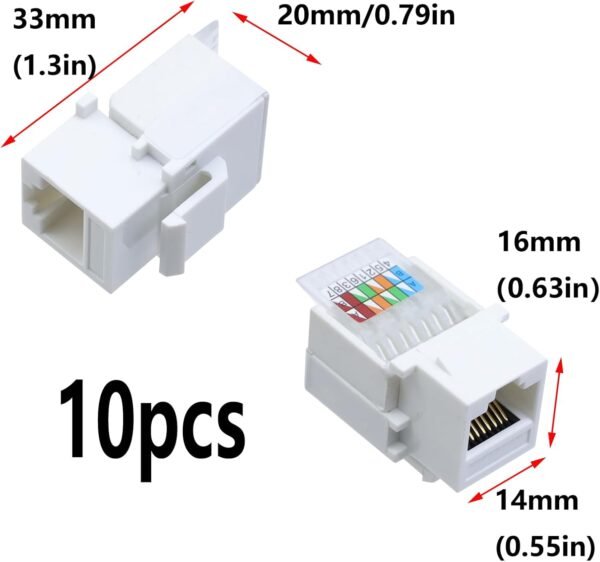

10pcs x Cat5e RJ45 Keystone Jacks in White

For category 5e 5 cables, RJ-45 modular plug is 8-position 8-conductor (8P8C) and designed for computer networking.
Manufactured from high-impact clear poly-carbonate to withstand everyday wear and tear.
Unique toolless design does not require the use of a crimping tool. Simply insert the leads following the color coding, and press down the lid.

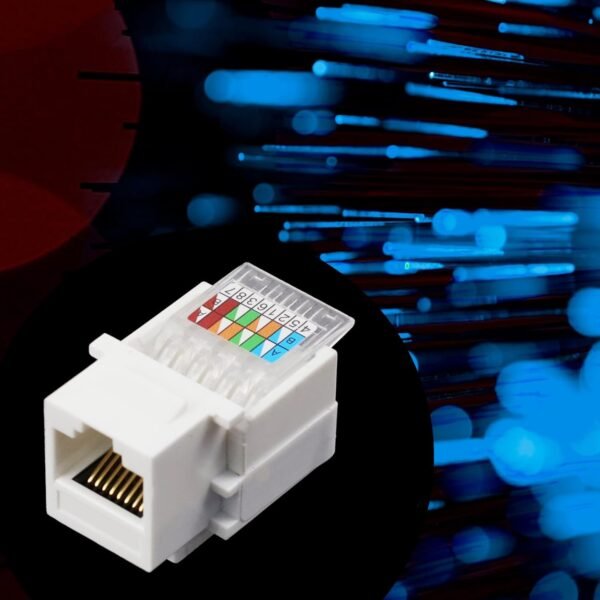

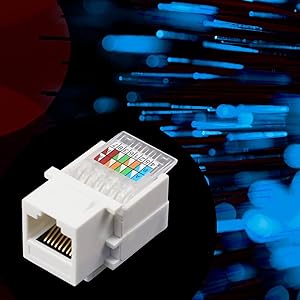

568A and 568B color wiring diagram is integrated on the lid for easy installation.
Gold plated contacts and easy snap-in retaining clip ensure a secure and corrosion free connection. You can except error-free data transfers.
